Xoxoday API — Standard Workflow & Example
A practical guide showing how developers can integrate with Xoxoday’s core APIs in the correct sequence, including endpoint purpose, example requests, responses, and integration flow.
Authentication & Common Headers
All API calls require an Authorization header and standard headers:
Authorization: Bearer {ACCESS_TOKEN}
Content-Type: application/json
X-Client-Id: {CLIENT_ID}
To generate the access token, authenticate using Xoxoday’s OAuth API. You can refer to the documentation here.
Core APIs
- Get Filters API — Retrieves available filters like country, brand, and category for the voucher catalog.
- Get Vouchers API — Fetches voucher list based on filters and country.
- Get Balance API — Returns wallet balance for the authenticated client.
- Place Order API — Places an order for selected vouchers.
- Get Order Details API — Fetches order details for a given order ID or PO number.
- Get Order History API — Lists all orders placed within a given timeframe.
- Get Payment Report API — Provides a detailed payment report for reconciliation.

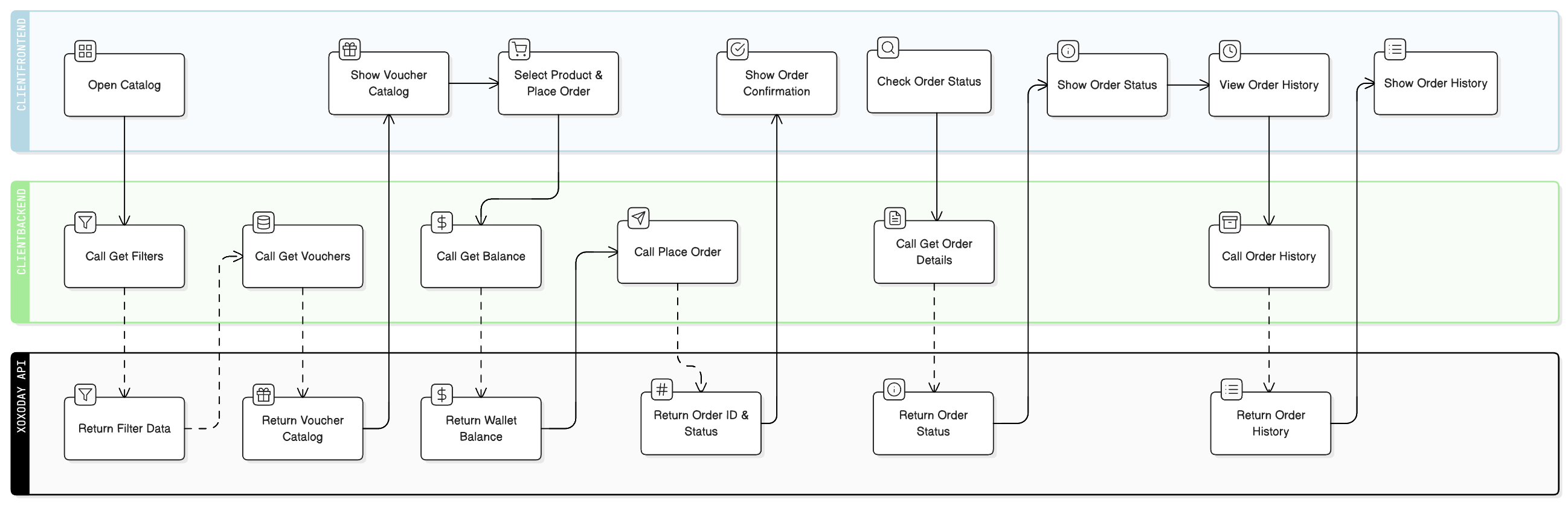

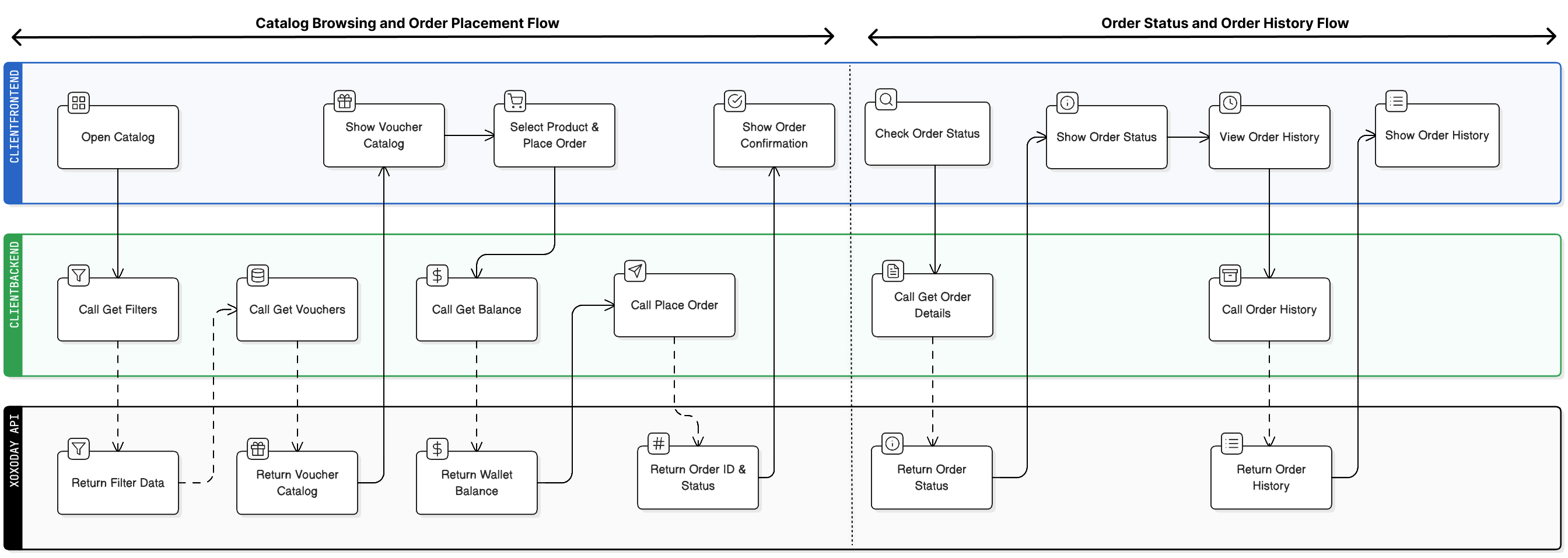

Workflow Diagram
Standard Workflow — From Browse to Redemption
Retrieve Filters
Purpose: Get the filters for vouchers (country, brand, category).
Example Request:
curl --request POST \
--url https://stagingstores.xoxoday.com/chef/v1/oauth/api \
--header 'accept: application/json' \
--header 'content-type: application/json' \
--data '
{
"query": "plumProAPI.mutation.getFilters",
"tag": "plumProAPI",
"variables": {
"data": {
"filterGroupCode": "Country",
"includeFilters": "",
"excludeFilters": "uae"
}
}
}
Example Response:
{
"data": {
"getFilters": {
"status": 1,
"data": [
{
"filterGroupName": "Country",
"filterGroupDescription": "",
"filterGroupCode": "country",
"filters": [
{
"filterValue": "Afghanistan",
"isoCode": "AF",
"filterValueCode": "afghanistan"
},
{
"filterValue": "Andorra",
"isoCode": "AD",
"filterValueCode": "andorra"
}
]
}
]
}
}
}
Retrieve Vouchers
Purpose: Get vouchers available for the selected country and filters.
Example Request:
curl --request POST \
--url https://stagingstores.xoxoday.com/chef/v1/oauth/api/ \
--header 'accept: application/json' \
--header 'content-type: application/json' \
--data '
{
"query": "plumProAPI.mutation.getVouchers",
"tag": "plumProAPI",
"variables": {
"data": {
"limit": 10,
"page": 1,
"includeProducts": "",
"excludeProducts": "",
"exchangeRate": 1,
"sort": {
"field": "name",
"order": "ASC"
}
}
}
}
'
Example Response:
{
"data": {
"getVouchers": {
"status": 1,
"data": [
{
"productId": 1535,
"name": "Amazon.in",
"description": "",
"orderQuantityLimit": 10,
"termsAndConditionsInstructions": "",
"expiryAndValidity": "",
"redemptionInstructions": "",
"categories": "eCommerce",
"lastUpdateDate": "2020-01-06 10:23:24",
"imageUrl": "",
"currencyCode": "INR",
"currencyName": "rupees",
"countryName": "India",
"countryCode": "IN",
"countries": [
{
"code": "IN",
"name": "India"
}
],
"valueType": "fixed_denomination",
"maxValue": 0,
"minValue": 0,
"valueDenominations": "20,30,500,1000,2500",
"tatInDays": 0,
"usageType": "",
"deliveryType": "",
"isCommon": "",
"fee": 0,
"discount": 0,
"exchangeRate": "1",
"isPhoneNumberMandatory": false,
"isRecommended": 1,
"filterGroupCode": "voucher_category"
}
]
}
}
}
Get Balance
Purpose: Fetch available wallet balance before placing an order.
Example Request:
curl --request POST \
--url https://stagingstores.xoxoday.com/chef/v1/oauth/api \
--header 'accept: application/json' \
--header 'content-type: application/json' \
--data '
{
"query": "plumProAPI.query.getBalance",
"tag": "plumProAPI",
"variables": {
"data": {}
}
}
'
Example Response:
{
"data": {
"getBalance": {
"status": 1,
"data": {
"value": 5870.02,
"currency": "INR"
}
}
}
}
Usage: If balance < voucher price, notify the user to top-up before placing an order.
Place Order
Purpose: Call place order API to procure a voucher.
Example Request:
curl --request POST \
--url https://stagingstores.xoxoday.com/chef/v1/oauth/api/ \
--header 'accept: application/json' \
--header 'content-type: application/json' \
--data '
{
"query": "plumProAPI.mutation.placeOrder",
"tag": "plumProAPI",
"variables": {
"data": {
"productId": 15365,
"quantity": 1,
"denomination": 20,
"email": "[email protected]",
"contact": "+1-4705000000",
"tag": "Rewarding",
"poNumber": "PO12662",
"notifyReceiverEmail": 0,
"notifyAdminEmail": 0
}
}
}
'
Example Response:
{
"data": {
"placeOrder": {
"status": 1,
"data": {
"orderId": 6474256,
"orderTotal": 100,
"orderDiscount": "",
"discountPercent": "",
"currencyCode": "INR",
"currencyValue": 1,
"amountCharged": 100,
"orderStatus": "complete",
"deliveryStatus": "delivered",
"tag": "",
"quantity": 1,
"vouchers": [
{
"productId": 1007,
"orderId": 6474256,
"voucherCode": "DEMO-1676340039265-p6aqnl",
"pin": "DEMO-PIN",
"validity": "2028-02-14",
"amount": 100,
"currency": "INR",
"country": "IN",
"type": "codePin",
"currencyValue": 1
}
],
"voucherDetails": [
{
"orderId": 6474256,
"productId": 1007,
"productName": "Flipkart",
"currencyCode": "INR",
"productStatus": "delivered",
"denomination": 100
}
]
}
}
}
}
Get Order Details
Purpose: Retrieve the details and status of an order.
Example Request:
curl --request POST \
--url https://stagingstores.xoxoday.com/chef/v1/oauth/api \
--header 'accept: application/json' \
--header 'content-type: application/json' \
--data '
{
"query": "plumProAPI.mutation.getOrderDetails",
"tag": "plumProAPI",
"variables": {
"data": {
"poNumber": "PO123",
"orderId": 123,
"sendMailToReceiver": 0
}
}
}
'
Example Response:
{
"data": {
"getOrderDetails": {
"status": 1,
"data": {
"orderId": 1,
"vouchers": [
{
"amount": "10",
"country": "India",
"currency": "INR",
"orderId": 128618,
"pin": "key_c26323726135beaa4e",
"productId": 28543,
"tag": "somethingToTagThisOrder",
"type": "codePin",
"validity": "2020-10-02",
"voucherCode": "4162581029814703",
"currencyValue": 0.1
}
],
"amountCharged": 90,
"currencyCode": "USD",
"discountPercent": 10,
"orderDiscount": 10,
"orderTotal": 100,
"orderStatus": "complete",
"deliveryStatus": "pending"
}
}
}
}
Get Order History
Purpose: List all past orders placed by the client.
Example Request:
curl --request POST \
--url https://stagingstores.xoxoday.com/chef/v1/oauth/api \
--header 'accept: application/json' \
--header 'content-type: application/json' \
--data '
{
"query": "plumProAPI.mutation.getOrderHistory",
"tag": "plumProAPI",
"variables": {
"data": {
"startDate": "2012-07-25",
"endDate": "2012-07-28",
"limit": 10,
"page": 1
}
}
}
'
Example Response:
{
"data": {
"getOrderDetails": {
"status": 1,
"data": {
"orderId": 6474256,
"orderTotal": 100,
"orderDiscount": "",
"discountPercent": "",
"currencyCode": "INR",
"currencyValue": 1,
"amountCharged": 100,
"orderStatus": "complete",
"deliveryStatus": "delivered",
"tag": "",
"orderDate": "2024-02-07 12:25:45",
"quantity": 1,
"shippingDetails": {
"shippingFirstName": "",
"shippingLastName": "",
"shippingContactNo": "",
"shippingCompany": "",
"shippingAddress1": "",
"shippingAddress2": "",
"shippingCity": "",
"shippingState": "",
"shippingCountry": "",
"shippingPostcode": ""
},
"vouchers": [
{
"productId": 1007,
"orderId": 6474256,
"voucherCode": "DEMO-1676340039265-p6aqnl",
"pin": "DEMO-PIN",
"validity": "2028-02-14",
"amount": 100,
"currency": "INR",
"country": "IN",
"type": "codePin",
"currencyValue": 1
}
],
"voucherDetails": [
{
"orderId": 6474256,
"productId": 1007,
"productName": "Flipkart",
"currencyCode": "INR",
"productStatus": "delivered",
"denomination": 100
}
]
}
}
}
}
Get Payment Report
Purpose: For admins to reconcile payments or settlements.
Example Request:
curl --request POST \
--url https://stagingstores.xoxoday.com/chef/v1/oauth/api \
--header 'accept: application/json' \
--header 'content-type: application/json' \
--data '
{
"query": "plumProAPI.mutation.paymentHistory",
"tag": "plumProAPI",
"data": {
"data": {
"startDate": "2012-07-25",
"endDate": "2012-07-28",
"limit": 10,
"page": 1
}
}
}
'
Example Response:
{
"data": {
"getPaymentReport": {
"status": 1,
"data": [
{
"invoice_number": "N3352A",
"reference_id": "zYEgsdgUTZA3",
"date": "2023-06-01",
"reason": "Brand vouchers issued",
"adjusted_amount": 100,
"transaction_status": "Complete",
"closing_balance": 97690
},
{
"invoice_number": "IN423204732",
"reference_id": "778mM7etFj",
"date": "2023-05-23",
"reason": "Funds added",
"adjusted_amount": 100000,
"transaction_status": "Complete",
"closing_balance": 100000
}
]
}
}
}
To explore the Rewards APIs in more detail and understand each endpoint thoroughly, please refer to the Xoxoday Rewards API documentation
